FRVKLOOP - Illuminated emergency stop for PCB mounting
Compact illuminated emergency stop with rotary release for mounting on printed circuit boards.
Series
SHORTRON®
Mounting aperture
Ø 22.3 mm
Contact type
2NC
Illumination
Yes
Illuminant
LED integrated
Colour illuminant
white
Colour actuator
red
Colour housing/enclosure
Yellow
Shape
round
Degree of protection front
IP67
IP65
IP65
Operating temperature
-25°C ... 70°C
Rated operating voltage
120 V AC
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
3 A AC
1.5 A AC
2 A DC
1 A DC
0.55 A DC
0.27 A DC
1.5 A AC
2 A DC
1 A DC
0.55 A DC
0.27 A DC
Mechanical life
50,000 switching cycles
Electrical life
50,000 switching cycles at rated voltage
Approvals
TÜV_Süd , CCC, cURus , CE, UKCA

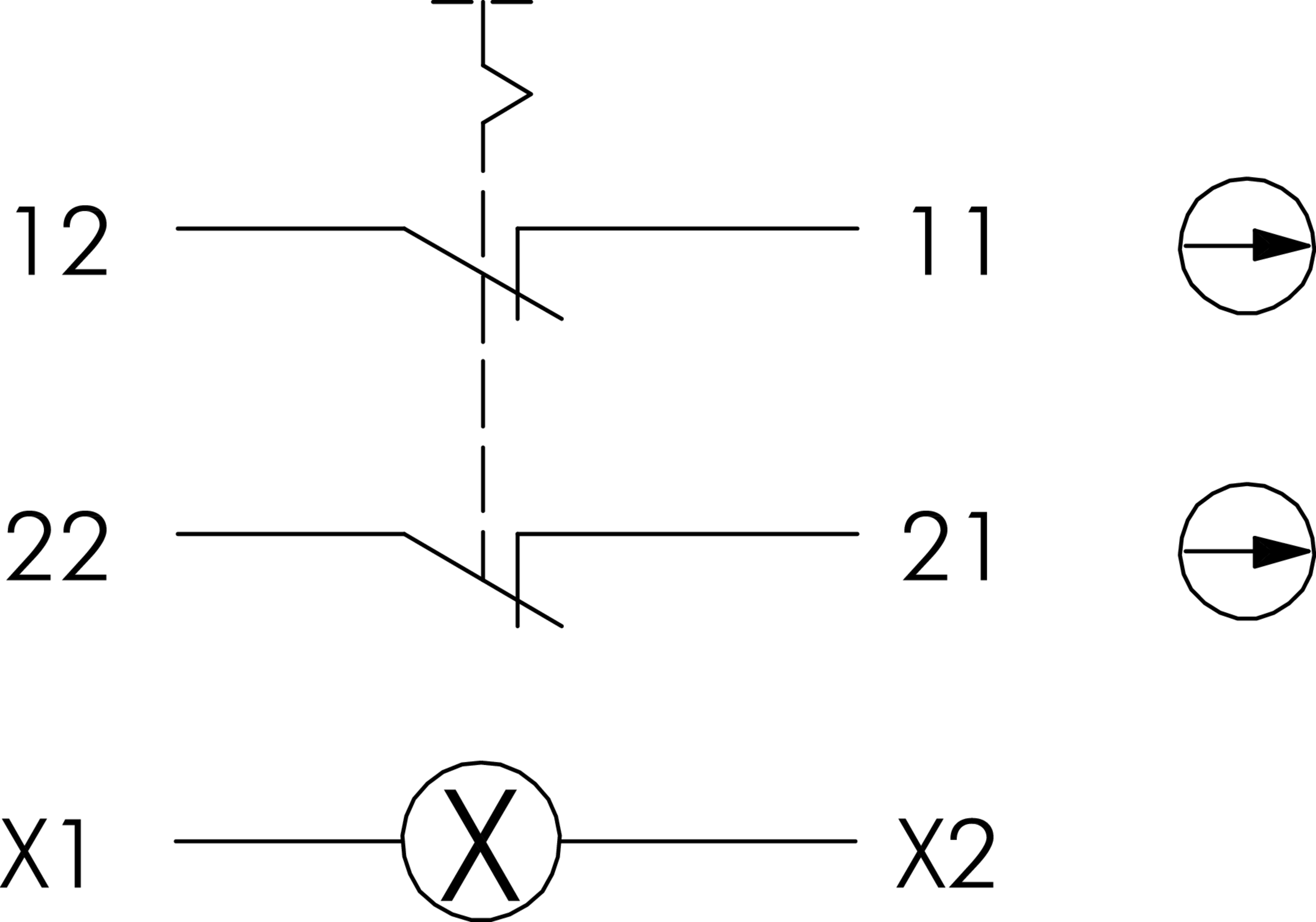

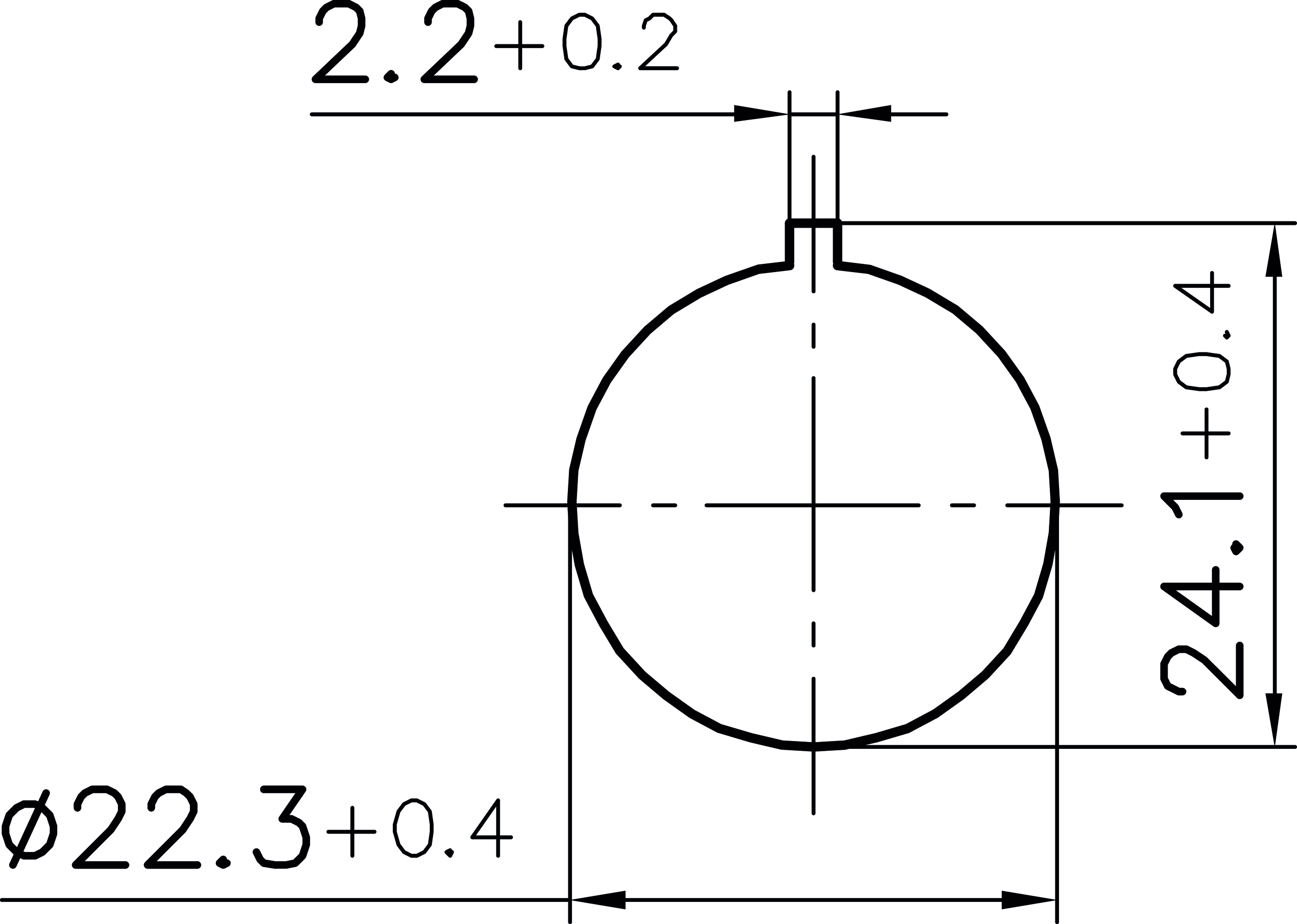

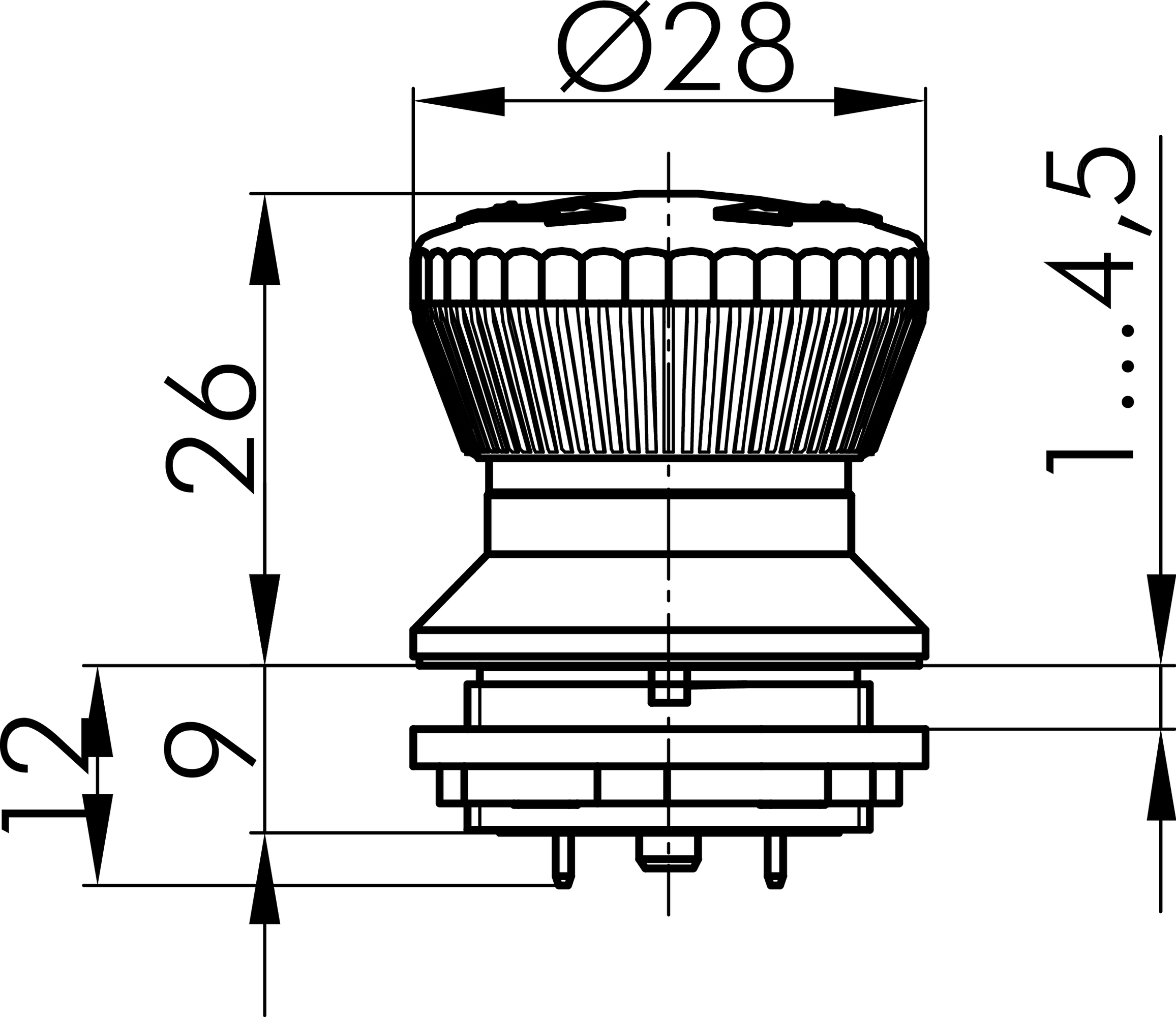

Technical sketches
